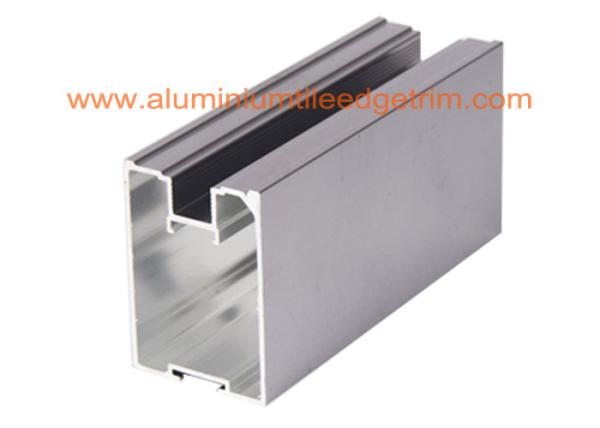

More Design Aluminium Sliding Wardrobe Door Profiles Anodized Grey
| Product | Anodized Aluminium Sliding Wardrobe Door Profiles |
| Alloy: | 6063,6061,6005,6463,6005A,6060,6101,6082,6351 |
| Temper : | T3-T8, T4, T5, T6,T66 |
| Surface Treatment: | Wrapping, Polishing, Anodized, Sand blasting, Wire drawing, Powder
coating, etc |
| Colour: | More than 40 kinds of colors for you to choose; Colour based on
Standard Customers |
| Packaging: | Pearl cotton + paper |
| Profile type: | Sliding door aluminum profiles |
| Wardrobe aluminum profiles |
| Door aluminum profiles |
| Delivery Detail: | 20-35 days |
| Length: | 4-6m |
| Chemical composition: |
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Impurity |
| 6063 | 0.2~0.6 | 0.35 | 0.1 | 0.1 | 0.45~0.9 | 0.1 | 0.1 | 0.1 | 0.15 |
| 6061 | 0.4~0.8 | 0.7 | 0.15~0.4 | 0.15 | 0.8~1.2 | 0.04~0.35 | 0.25 | 0.15 | 0.15 |
| Mechanical property: |
| Alloy | Temper | Tensile strength | Yield strength | Elongation |
| 6061 | T6 | >= 265Mpa | >= 245Mpa | >= 8% |
| 6061 | T5 | >= 160Mpa | >= 110Mpa | >= 8% |
| T5 | >= 205Mpa | >= 180Mpa | >= 8% |
| Anodized: |
| Grade | Anodized thickness | Hole scaling quality of oxide layer |
| Average thickness | Local thickness | P.Cr acid-erosion weight less method |
| AA10 | >= 10um | >= 8um | >= 30 mg/d m2 |
Introduction:
Aluminum extrusion profiles is a technique used to transform
aluminum alloy into objects with a definitive cross-sectional
profile for a wide range of uses. The extrusion process makes the
most of aluminum’s unique combination of physical characteristics.
Its malleability allows it to be easily machined and cast, and yet
aluminum is one third the density and stiffness of steel so the
resulting products offer strength and stability, particularly when
alloyed with other metals.
FAQ:
Q1: What’s the thickness for anodizing? Can you do 15 um?
A: Our normal thickness is about 10 um. Yes, we can do 15um and
above.
Q2: What color you can do for powder coating? The thickness for powder
coat?
A: We can do any color for powder coat as long as you can provide
the color sample. Our normally powder coating thickness is 60-80um.
Q3: What color you can do for wood grain?
A: Our most popular colors are Western Red Cedar, Australia Cedar,
Jarrah I, Jarrah II, Chestnut, Bush Cherry, Bush Wood, Western
Wood, Snow Gum, etc. If you need any other colors, we can do
according to the color samples you provide.
Q4: How’s the weather resistance for wood grain finish D1010?
A: (1). Powder: Akzo Noble Interpon D1010.
(2). Wood grain film: Italian Menphis.
(3). Standard complied: American AAMA Standard.2603
(4). UV test:1000 hours.
(5). Salt spraying test:1000 hours.
(6). Normal weather: 10 years color guarantee.
Other different size, welcome to contact with me for cooperation!
